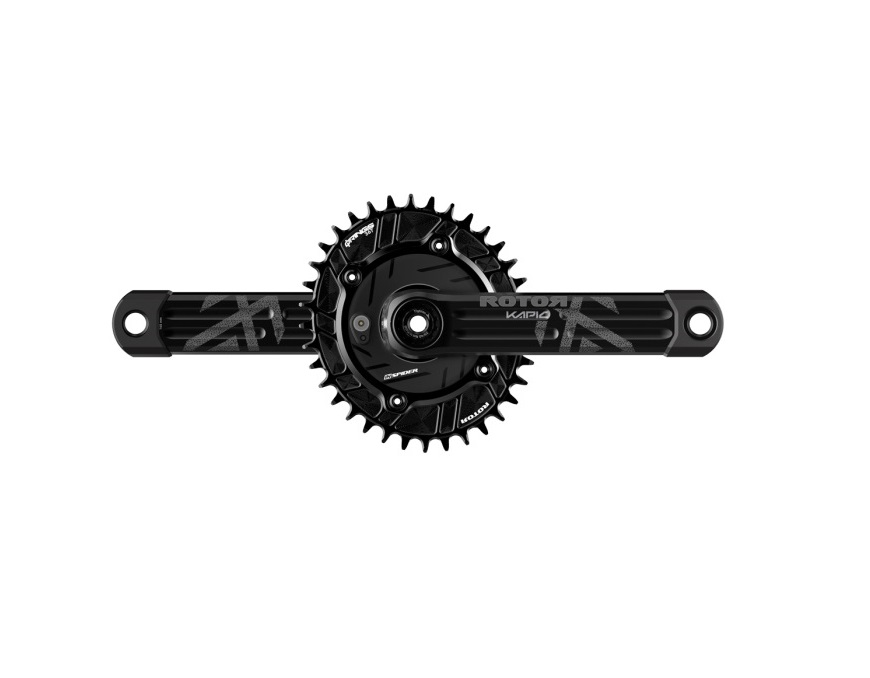

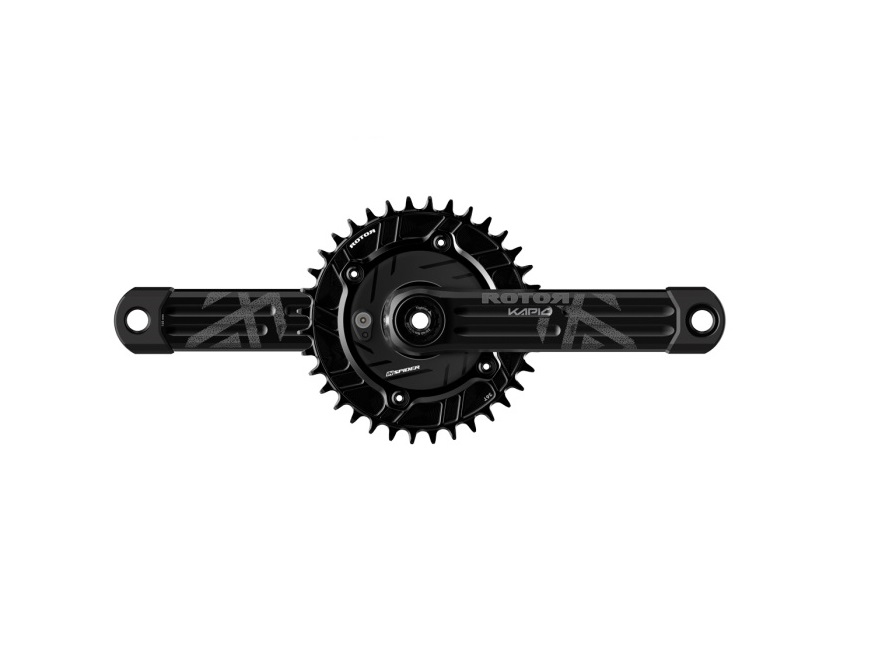

The ROTOR INspider MTB Kapic Crankset

ROTOR INspider MTB KAPIC crankset. This powermeter is produced in Spain with 7075-T6 aerospace aluminium, manufactured by CNC machining. The INspider® MTB is compatible with all frames on the market, making it incredibly universal!

This new INspider MTB is a whopping 32% lighter than the previous version and now weighs just 105g. The power meter is integrated into the spider. The location of the power meter reduces the risk of bumps and shocks. The IP67 certification ensures maximum dust, water and mud resistance. Thanks to the thermal compensation sensor, the INspider can be used in temperatures between -20ºC and 50ºC. Also, the new version is compatible with all bike computers on the market via ANT+™ and Bluetooth® Smart.

The KAPIC crankarms are manufactured using CNC processes and it features Rotor’s Trinity Drilling System. This means the crank arm has three internal spaces from axle to pedal, offering the double advantage of very light cranks with tremendous stiffness to withstand the toughest MTB trails. Thanks to its wide applicability, this crankset is compatible with Standard (CL49) and Boost (CL52 and CL55) frames.

ROTOR chainrings specially designed for the ROTOR INspider MTB 100X4. These chainrings feature Universal Tooth technology, which guarantees compatibility with 1×12 and 1×11 Shimano® and SRAM® Eagle® chains. Possibility of mounting chainrings from 30 teeth upwards for all types of users.

If health and/or performance are important to you, we recommend the oval Q RINGS chainrings. These enable you to pedal more efficiently, developing maximum power while pedalling. This ensures better traction on uneven terrain, and less pressure on your knees, resulting in healthier pedalling.

CHARACTERISTICS

• Crank lenght: 165mm | 170mm | 175mm
• Size chainring: 30T | 32T | 34T | 36T ( oval Q-Ring or Round Ring )
• Weight: w/(170mm & R34 BCD100x4) 635.5g (CL49) | 637.5g (CL52) | 644g (CL55)
• Axle/Spindle: 30mm
• Q-Factor: 163.5mm Standard CL49 (L135 axle) | 169.5mm Boost CL52 (L141 axle) | 175.5mm Boost CL55 (L147 axle)
• BCD: 100×4
• Chainline: 49mm | 52mm |55mm
• Measurement: Both legs (Right-Left combined)
• Data: Power | Cadence | Balance (estimated) | Torque 360 | OCA
• Power Accuracy: +/- 1.5%
• Battery Life: 350 hours (Riding time)
• Battery specifications: Rechargable Li-ion + USB cable
• Connectivity: ANT+™ & Bluetooth® Smart compatible
• Water resistance: IP67
• Material: Aluminium 7075-T6 CNC – Black anodized
• Frame compatibility: Compatible with all Standard and Boost MTB frames ( for Superboost choose Kapic Carbon )
• Group compatibility: Shimano® 1×12 | SRAM® 1×12 Eagle ®

INCLUDED IN THE BOX

• ROTOR KAPIC crank arms
• ROTOR INspider MTB BCD100X4 power meter
• ROTOR BCD100X4 MTB chainring oval or round
• ROTOR KAPIC axle
• ROTOR 30MM Universal Spacer Kit
• USB charging cable
